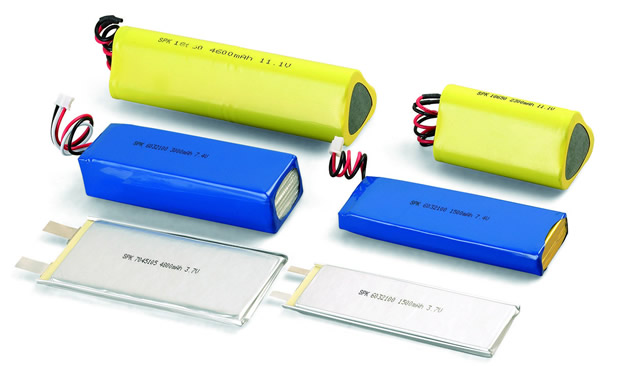

PORTABLE DVD BATTERIES
This series is able to power portable DVDs continuously, as well as has the characteristics of high capacity and high discharge voltage platform.
| Type |
Model |
Nominal
Voltage
(V) |
Nominal
Capacity
(mAh) |
Cell Dimension(mm) |
Internal Resistance
(mohm) |
Approximate
Weight(g) |
Thickness
(¡À0.2) |
Width
(¡À0.5) |
Height
(¡À0.5) |
| Li-polymer |
474147AY-880 |
3.7 |
880 |
4.5 |
40.5 |
45.5 |
R¡Ü80 |
15.0 |
3031134AY-1350 |
3.7 |
1350 |
3.0 |
31.0 |
134.0 |
R¡Ü40 |
27.8 |
102649AY-1400 |
3.7 |
1400 |
10.0 |
26.0 |
48.5 |
R¡Ü60 |
28.8 |
356066AY-1430 |
3.7 |
1430 |
3.3 |
60.0 |
66.0 |
R¡Ü60 |
29.4 |
345085AY-1500 |
3.7 |
1500 |
3.4 |
50.0 |
85.0 |
R¡Ü60 |
30.8 |
503876AY-1700 |
3.7 |
1700 |
4.8 |
38.0 |
76.0 |
R¡Ü60 |
34.9 |
405475AY-1800 |
3.7 |
1800 |
3.8 |
54.0 |
75.0 |
R¡Ü60 |
37.0 |
633378AY-1850 |
3.7 |
1850 |
6.3 |
33.0 |
78.0 |
R¡Ü40 |
38.0 |
505065AY-1850 |
3.7 |
1850 |
4.8 |
50.0 |
65.0 |
R¡Ü40 |
38.0 |
702990AY-1900 |
3.7 |
1900 |
6.8 |
29.0 |
90.0 |
R¡Ü40 |
39.1 |
4030160AY-2000 |
3.7 |
2000 |
4.0 |
30.0 |
160.0 |
R¡Ü300 |
40.0 |
507085AY-3200 |
3.7 |
3200 |
5.0 |
70.0 |
85.0 |
R¡Ü40 |
65.8 |
6048107AY-3800 |
3.7 |
3800 |
6.0 |
48.0 |
105.0 |
R¡Ü30 |
78.1 |
5567100AY-3900 |
3.7 |
3900 |
5.3 |
67.0 |
100.0 |
R¡Ü40 |
80.2 |
5067105AY-4200 |
3.7 |
4200 |
5.0 |
67.0 |
105.0 |
R¡Ü40 |
86.3 |
406066ABY-1100 |
3.7 |
1100 |
4.0 |
60.0 |
66.0 |
R¡Ü60 |
22.6 |
742299ABY-1350 |
3.7 |
1350 |
7.4 |
22.0 |
99.0 |
R¡Ü50 |
26.5 |
6032100ABY-1700 |
3.7 |
1700 |
6.0 |
32.0 |
100.0 |
R¡Ü40 |
34.9 |
306883ABY-1700 |
3.7 |
1700 |
2.8 |
68.0 |
83.0 |
R¡Ü40 |
34.9 |
6032100ABY-1800 |
3.7 |
1800 |
6.0 |
32.0 |
100.0 |
R¡Ü40 |
37.0 |
743080CBY-1400 |
3.7 |
1400 |
7.4 |
30.0 |
80.0 |
R¡Ü40 |
32.0 |
682699CBY-1550 |
3.7 |
1550 |
6.6 |
26.0 |
99.0 |
R¡Ü60 |
31.9 |
564793CBY-2300 |
3.7 |
2300 |
5.4 |
47.0 |
93.0 |
R¡Ü40 |
47.3 |
Remark:
A¡ª¡ªLiCoO2; B¡ª¡ªLiMnO2; C¡ª¡ªLiCoxNiyMnzO2; D¡ª¡ªLiFePo4; H¡ª¡ªLiCoO2&LiCoxNiyMnzO2; Y¡ª¡ªNormal Series¡ª¡ªHigh Rate Discharge Series
|
