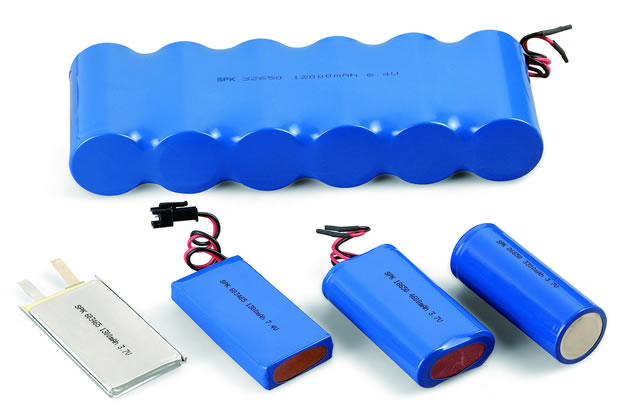

POWER TOOLS BATTERIES

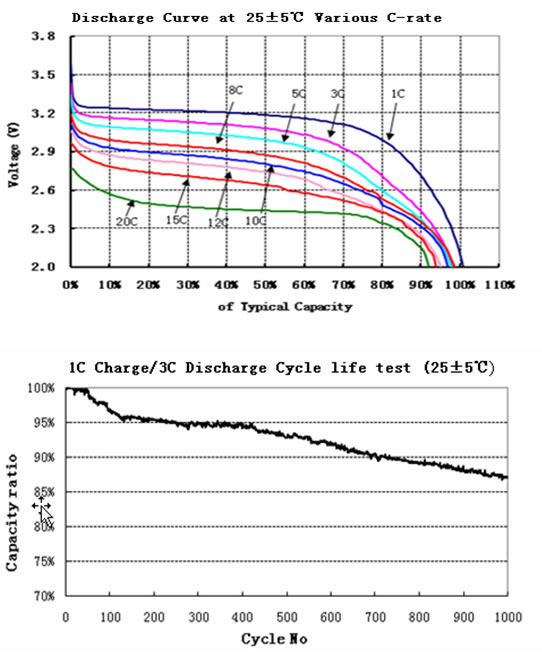

This series is designed for high drain devices. With the characteristic of higher discharge current. The batteries can be charged at 1C and discharged up to 15C.
Power Tool Batteries |
Type |
Model |
Nominal
Voltage
(V) |
Nominal
Capacity
(mAh) |
Cell Dimension(mm) |
Internal Resistance
(mohm) |
Approximate
Weight(g) |
Thickness
(\0.2) |
Width
(\0.5) |
Height
(\0.5) |
Li-polymer |
283435AY-270 |
3.7 |
270 |
2.6 |
34.0 |
35.0 |
R+150 |
5.6 |
Remark:
A!!LiCoO2; B!!LiMnO2; C!!LiCoxNiyMnzO2; D!!LiFePo4; H!!LiCoO2&LiCoxNiyMnzO2; Y!!Normal Series!!High Rate Discharge Series

|
