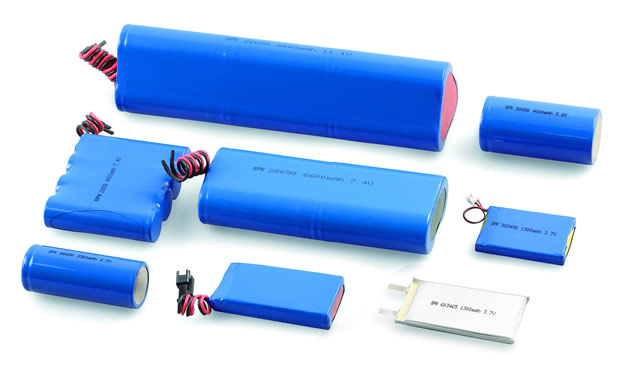

PORTABLE MEDICAL DEVICE BATTERIES
This series has excellent reliability and safety chargeracteristics, which can be widely used in blood-pressure meters, audiphones, implanted electric devices and electrically powered wheelchairs, etc.
| Type |
Model |
Nominal
Voltage
(V) |
Nominal
Capacity
(mAh) |
Cell Dimension(mm) |
Internal
Resistance
(mohm) |
Approximate
Weight(g) |
Thickness
(¡À0.2) |
Width
(¡À0.5) |
Height
(¡À0.5) |
| Li-polymer |
301127AY-45 |
3.7 |
45 |
3.0 |
11.0 |
27.0 |
R¡Ü600 |
1.5 |
401430AY-120 |
3.7 |
120 |
4.0 |
14.0 |
30.0 |
R¡Ü230 |
2.5 |
302535AY-210 |
3.7 |
210 |
2.8 |
25.0 |
35.0 |
R¡Ü150 |
4.3 |
6649105AY-4100 |
3.7 |
4100 |
6.6 |
49.0 |
105.0 |
R¡Ü25 |
84.3 |
656194ABY-4000 |
3.7 |
4000 |
6.5 |
61.0 |
94.0 |
R¡Ü40 |
82.2 |
| Type |
Model |
Nominal
Voltage
(V) |
Nominal
Capacity
(mAh) |
Cell Dimension(mm) |
Internal
Resistance
(mohm) |
Approximate
Weight(g) |
Diameter
(¡À0.05) |
Height
(¡À0.5) |
Cylindrical
Li-ion |
ICR26650DY-2800 |
3.2 |
2800 |
26.05 |
65.5 |
R¡Ü25 |
57.5 |
Remark:
A¡ª¡ªLiCoO2; B¡ª¡ªLiMnO2; C¡ª¡ªLiCoxNiyMnzO2; D¡ª¡ªLiFePo4; H¡ª¡ªLiCoO2&LiCoxNiyMnzO2; Y¡ª¡ªNormal Series¡ª¡ªHigh Rate Discharge Series
|
