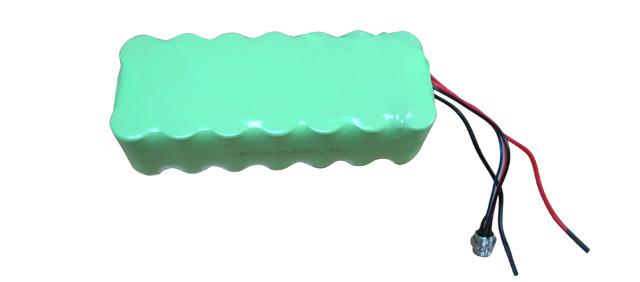

Ni-MH High Power Cylindrical Battery

Ni-MH High Power Cylindrical Battery

Size Model Nominal
Voltage
(V)		 Nominal
Capacity
(mAh)		 Dimensions Standard Charge Rapid Charge Internal
Impedance
(mΩ£©		 Weight
Approx
(g)
Diameter
(mm)		 Height
(mm)		 Current
(mA)		 Time
(h)		 Current
(mA)		 Time
(h)
AAA H80 1/4AAAP 1.2 80 10.5-0.5 11.0-1.0 8 15 80 1.2 Max 80 2.5
H100 1/3AAAP 1.2 100 10.5-0.5 13.0-1.0 10 15 100 1.2 Max 65 3.5
H120 1/3AAAP 1.2 120 10.5-0.5 15.2-1.0 12 15 120 1.2 Max 55 3.8
H150 1/3AAAP 1.2 150 10.5-0.5 15.2-1.0 15 15 150 1.2 Max 55 4.6
H180 1/3AAAP 1.2 180 10.5-0.5 18.0-1.0 18 15 180 1.2 Max 45 4.7
H230 1/2AAAP 1.2 230 10.5-0.5 23.0-1.0 23 15 230 1.2 Max 40 5.3
H240 1/2AAAP 1.2 240 10.5-0.5 23.0-1.0 24 15 240 1.2 Max 35 5.5
H260 1/2AAAP 1.2 260 10.5-0.5 23.0-1.0 26 15 260 1.2 Max 35 6.0
H280 2/3AAAP 1.2 280 10.5-0.5 28.5-1.0 28 15 280 1.2 Max 35 7.3
H300 2/3AAAP 1.2 300 10.5-0.5 28.5-1.0 30 15 3200 1.2 Max 28 7.5
H350 2/3AAAP 1.2 350 10.5-0.5 29.5-1.0 35 15 350 1.2 Max 28 7.7
H400 3/4AAAP 1.2 400 10.5-0.5 30.0-1.0 40 15 400 1.2 Max 25 9.6
H450 4/5AAAP 1.2 450 10.5-0.5 36.0-1.0 45 15 450 1.2 Max 23  9.6
H500 4/5AAAP 1.2 500 10.5-0.5 36.0-1.0 50 15 500 1.2 Max 23  10.0
H650AAAP 1.2 650 10.5-0.5 44.5-1.0 65 15 650 1.2 Max 18 12.2
H700AAAP 1.2 700 10.5-0.5 44.5-1.0 70 15 700 1.2 Max 18 12.5
H750 5/4AAAP 1.2 750 10.5-0.5 50.0-1.0 75 15 750 1.2 Max 18 13.8
H800 5/4AAAP 1.2 800 10.5-0.5 50.0-1.0 80 15 800 2.3 Max 18 14.0
AA H350 1/3AAP 1.2 350 14.5-0.5 17.5-1.0 35 15 350 2.3 Max 35 7.5
H550 1/2AAP 1.2 550 14.5-0.5 25.5-1.0 55 15 550 2.2 Max 28 13.8
H650 2/3AAP 1.2 650 14.5-0.5 29.0-1.0 65 15 650 1.2 Max 20 16.3
H700 2/3AAP 1.2 700 14.5-0.5 29.0-1.0 70 15 700 1.2 Max 20 17.5
H750 2/3AAP 1.2 750 14.5-0.5 29.0-1.0 75 15 750 1.2 Max 20 18.5
H1200 4/5AAP 1.2 1200 14.5-0.5 43.5-1.0 120 15 1200 1.2 Max 15 20.0
H1200AAP 1.2 1200 14.5-0.5 49.5-1.0 120 15 1200 1.2 Max 14 21.0
H1400AAP 1.2 1400 14.5-0.5 49.5-1.0 140 15 1400 1.2 Max 14 25.0
H1600AAP 1.2 1600 14.5-0.5 50.0-1.0 160 15 1600 1.2 Max 13 27.0
H1800AAP 1.2 1800 14.5-0.5 50.0-1.0 180 15 1800 1.2 Max 13 28.0
A H850 1/2AP 1.2 850 17.0-0.5 25.0-1.0 85 15 850 1.2 Max 23  17.0
H1000 2/3AP 1.2 1000 17.0-0.5 29.0-1.0 100 15 1000 1.2 Max 20 20.0
H1100 2/3AP 1.2 1100 17.0-0.5 29.0-1.0 110 15 1100 1.2 Max 18 20.7
H1250 2/3AP 1.2 1250 17.0-0.5 29.0-1.0 125 15 1250 1.2 Max 18 22.6
H1800 4/5AP 1.2 1800 17.0-0.5 43.0-1.0 180 15 1800 1.2 Max 12 31.5
H2200AP 1.2 2200 17.0-0.5 50.0-1.0 220 15 2200 1.2 Max 10 44.0
H3200 7/5AP 1.2 3200 17.0-0.5 67.0-1.0 320 15 3200 1.2 Max 8 64.0
N H450 2/3NP 1.2 450 12.0-0.5 29.0-1.0 45 15 450 1.2 Max 30 9.5
H480 2/3NP 1.2 480 12.0-0.5 29.0-1.0 48 15 480 1.2 Max 28 10.0
H500 2/3NP 1.2 500 12.0-0.5 29.0-1.0 50 15 500 1.2 Max 25 10.0
SCP H1500 4/5SCP 1.2 1500 23.0-0.7 34.0-1.5 150 15 1500 1.2 Max 15 38.0
H1800 4/5SCP 1.2 1800 23.0-0.7 34.0-1.5 180 15 1800 1.2 Max 12 43.0
H2000 4/5SCP 1.2 2000 23.0-0.7 34.0-1.5 200 15 2000 1.2 Max 10 45.0
H2200 4/5SCP 1.2 2200 23.0-0.7 34.0-1.5 220 15 2200 1.2 Max 10 46.0
H1500SCP 1.2 1500 23.0-0.7 43.0-1.5 150 15 1500 1.2 Max 20 39.0
H1800SCP 1.2 1800 23.0-0.7 43.0-1.5 180 15 1800 1.2 Max 18 45.0
H2000SCP 1.2 2000 23.0-0.7 43.0-1.5 200 15 2000 1.2 Max 12 46.0
H2500SCP 1.2 2500 23.0-0.7 43.0-1.5 250 15 2500 1.2 Max 10 48.5
H2800SCP 1.2 2800 23.0-0.7 43.0-1.5 280 15 2800 1.2 Max 8 52.0
H3000SCP 1.2 3000 23.0-0.7 43.5-1.5 300 15 3000 1.2 Max 8 57.7
H3300SCP 1.2 3300 23.0-0.7 43.5-1.5 330 15 3300 1.2 Max 8 62.0
H3600SCP 1.2 3600 23.0-0.7 44.0-1.5 360 15 3600 1.2 Max 5 63.0
H3800SCP 1.2 3800 23.0-0.7 44.0-1.5 380 15 3800 1.2 Max 5 65.5
H4000SCP 1.2 4000 23.0-0.7 44.0-1.5 400 15 4000 1.2 Max 5 69.2
H4200SCP 1.2 4200 23.0-0.7 44.0-1.5 420 15 4200 1.2 Max 5 73.0
