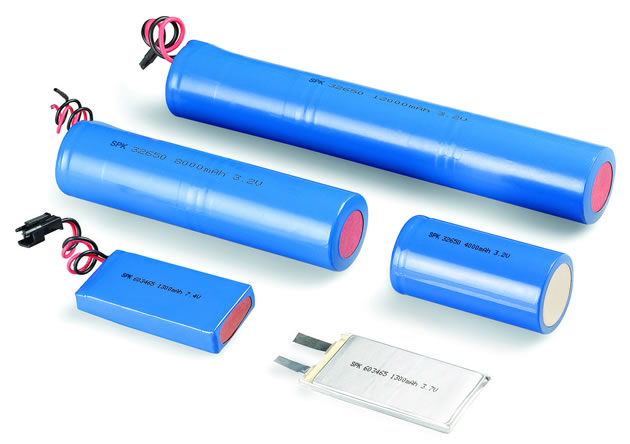

LAMP BATTERIES
£¨MINER LIGHT BATTERIES£¬LED LIGHT BATTERIES£¬FLASHLIGHT BATTERIES£©
This series adopts special techniques and materials. With the characteristics of safety, reliability and long working time, the batteries are widely applied to miner lights, LED lights, emergency lights, flashlights and others lamps.
| Type |
Model |
Nominal
Voltage
(V) |
Nominal
Capacity
(mAh) |
Cell Dimension(mm) |
Internal
Resistance
(mohm) |
Approximate
Weight(g) |
Thickness
(¡À0.2) |
Width
(¡À0.5) |
Height
(¡À0.5) |
| Li-polymer |
365065AY-1200 |
3.7 |
1200 |
3.6 |
50.0 |
63.5 |
R¡Ü80 |
24.7 |
446250AY-1450 |
3.7 |
1450 |
4.2 |
62.0 |
50.0 |
R¡Ü40 |
29.8 |
8045135AY-5000 |
3.7 |
5000 |
8.0 |
45.0 |
135.0 |
R¡Ü25 |
102.8 |
103463BY-1600 |
3.7 |
1600 |
10.0 |
34.0 |
63.0 |
R¡Ü50 |
39.0 |
603465ABY-1300 |
3.7 |
1300 |
6.0 |
34.0 |
65.0 |
R¡Ü60 |
26.7 |
574377ABY-2000 |
3.7 |
2000 |
5.5 |
43.0 |
77.0 |
R¡Ü40 |
41.1 |
Remark:
A¡ª¡ªLiCoO2; B¡ª¡ªLiMnO2; C¡ª¡ªLiCoxNiyMnzO2; D¡ª¡ªLiFePo4; H¡ª¡ªLiCoO2&LiCoxNiyMnzO2; Y¡ª¡ªNormal Series¡ª¡ªHigh Rate Discharge Series
|
